描述
可编程高低温试验箱
产品介绍:
长崎可编程高低温试验箱采用数控机床加工成型,造型美观大方,并采用平面把手,操作简便。箱体内胆采用进口高级不锈钢(SUS304)镜面板,箱体外胆采用A3钢板喷塑,增加了外观质感和洁浄度。大型观测视窗附照明灯保持箱内明亮,且利用发热体内嵌式钢化玻璃,随时清晰的观测箱内状况。箱体左侧配直径50mm的测试孔,可供外接测试电源线或信号线使用。
High-low temperature alternative testing machine use CNC machine shaping, it looks elegant appearance, easy to operate of flat hand. Inner chamber using imported advanced stainless steel(SUS304)panels, outer box using A3 steel plate spray plastic, increase the appearance and cleanliness of texture Plus light on observation window make inside brighter, and use the heater embedded toughened glass, clear observations of conditions inside the box at any time. Test pattern diameter distribution 50mm on the left of the chamber, can be used for external test power lines and signal lines.
性能&特点:
1、法国原装“泰康”或德国“比泽尔”单级/复迭压缩机制冷方式;
2、系统采用单元或二元式低温回路系统设计;
3、采用多翼式送风机强力送风循环,避开任何死角,可使测试区域内温度分布均匀。风路循环出风回风设计,风压风速均符合测试标准,并可使开门瞬间温度回温时间快。升温、降温、系统完全独立可提高效率,降低测试成本,增长寿命,减低故障率。
1、French”Tecumseh”German”Bitzer”single-stage/ cascade cycle compressor.
2、Compressor Refrigeration system using the system unit or binary-type low-temperature circuit design.
3、Using air feeder of more wings to circle the air and it can relate to every minds, make the temperature evenness on every area. Outlet air return air circulation wind path design, wind pressure and wind speed also correspond with test standard, and can make the door instantaneous temperature stabilizing time fast Completely independent heating&cooling system to improve the efficiency, reduce test cost, increase longevity,reduce failure rate.

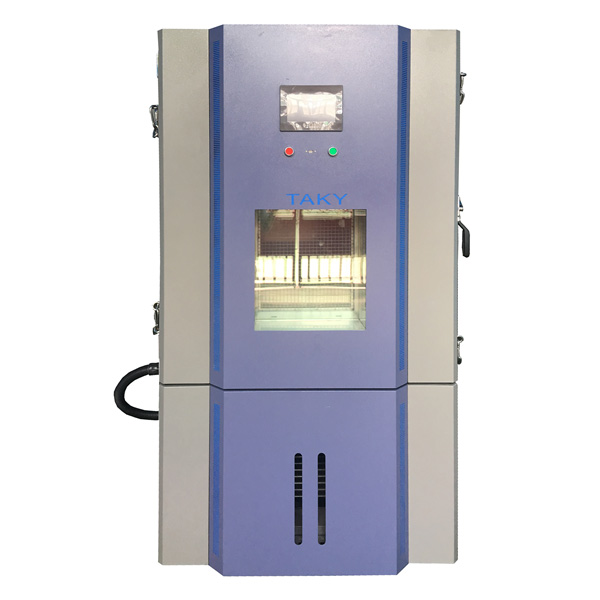

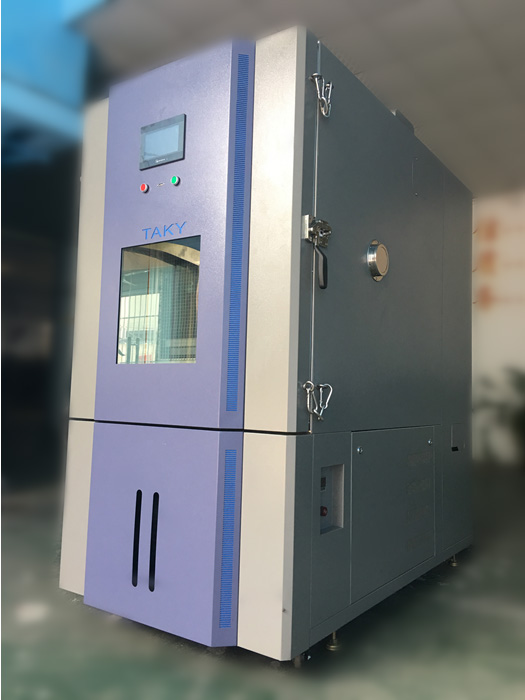

产品实物参考图:
可编程高低温试验箱
